| Quantity: | |
|---|---|

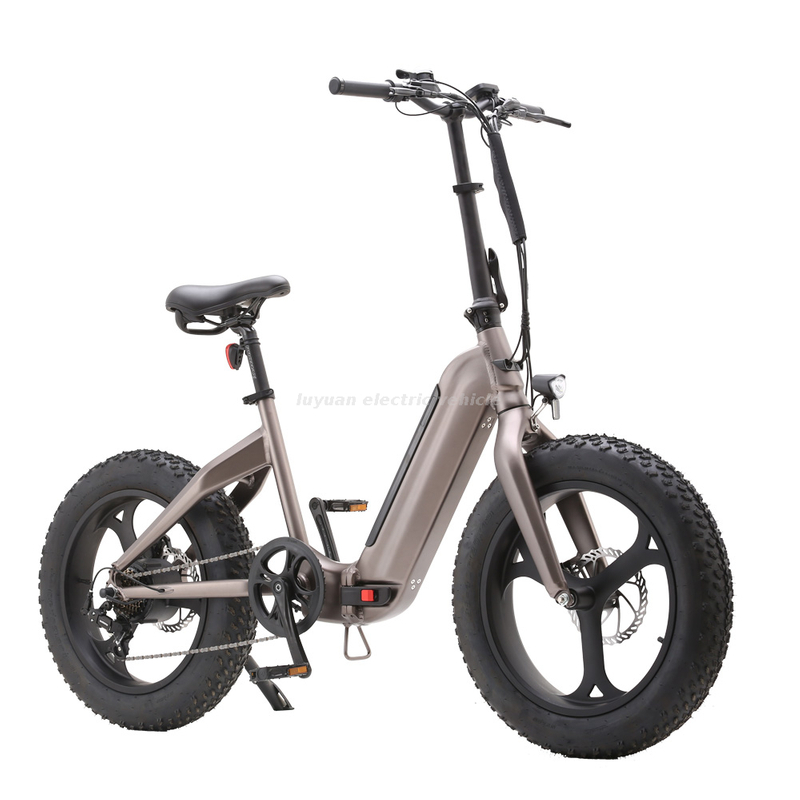

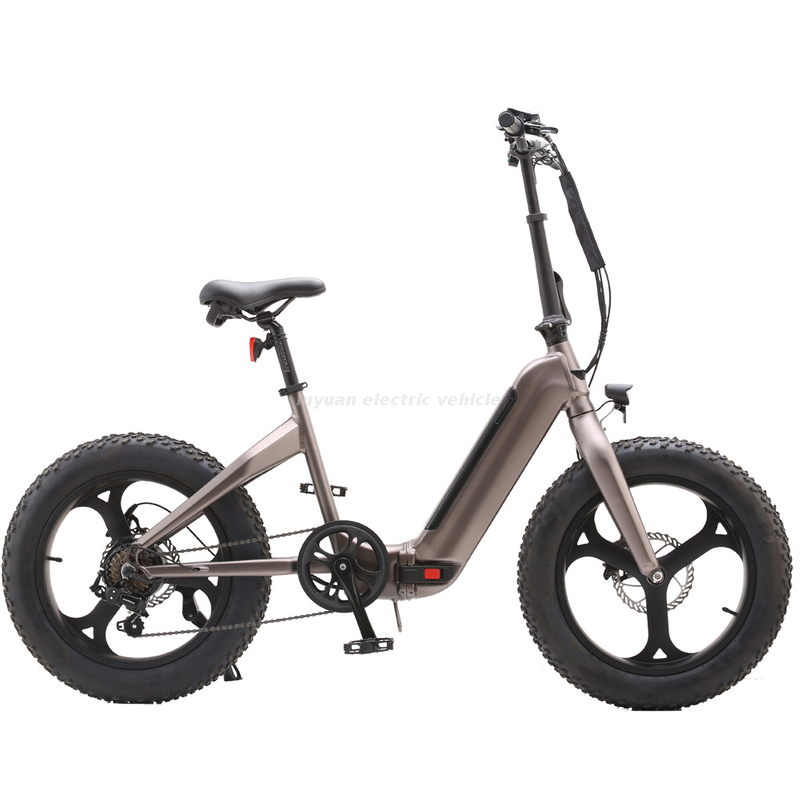

FB 02
Luyuan or OEM
| Model Name | FB 02 |

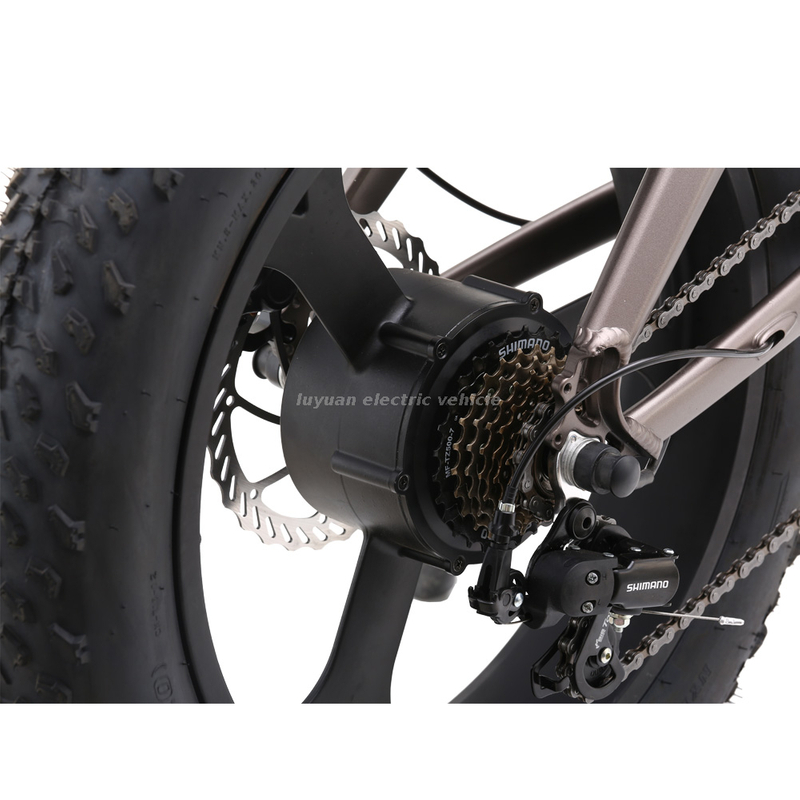

| Motor Power | 48V500W |
| Controller | 48V18A |
| Display Board | LCD 5 Gear |
| Battery | 48V10AH |
| Charger | Input AC110-220V,Output 54.6V/2A |
| Throttle | WUXING 130X(LH) |
| PAS Sensor | Speed sensor(left hidden dual Hall sensor) |

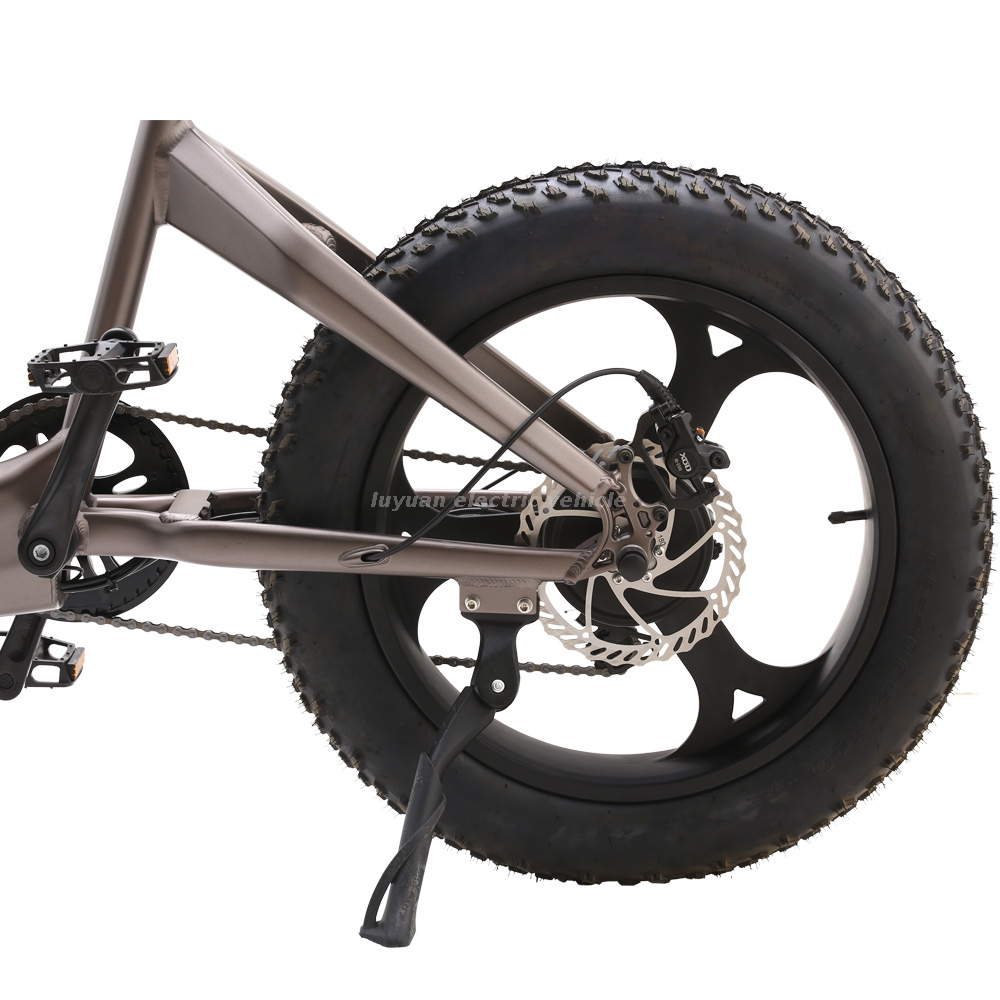

| Brake | XD-E500 Hydralic disc brake (180mm) |
| Derailleru | Shimano TX50-7/trigger shifter |
| Fork Suspension | / |
| Wheel/rim size | SEYOUN NJK 20*4.0 |
| Range/Speed 1 | 65-80km/18-20kmph |
| Range/Speed 2 | 40-50km/25kmph |
| Loading | 75-100kgs |
| Frame material | AL6061 |
| Body Size | 1750*610*1140mm |
| Wheelbase | 1120mm |
| Net Weight | 24-28kg |
| Battery Weight | 3kgs |
| Color option | |
| Packing size | 1470*240*730mm |
| Container QTY | 101pcs/264pcs |
| Model Name | FB 02 |
| Motor Power | 48V500W |
| Controller | 48V18A |
| Display Board | LCD 5 Gear |
| Battery | 48V10AH |
| Charger | Input AC110-220V,Output 54.6V/2A |
| Throttle | WUXING 130X(LH) |
| PAS Sensor | Speed sensor(left hidden dual Hall sensor) |
| Brake | XD-E500 Hydralic disc brake (180mm) |
| Derailleru | Shimano TX50-7/trigger shifter |
| Fork Suspension | / |
| Wheel/rim size | SEYOUN NJK 20*4.0 |
| Range/Speed 1 | 65-80km/18-20kmph |
| Range/Speed 2 | 40-50km/25kmph |
| Loading | 75-100kgs |
| Frame material | AL6061 |
| Body Size | 1750*610*1140mm |
| Wheelbase | 1120mm |
| Net Weight | 24-28kg |
| Battery Weight | 3kgs |
| Color option | |
| Packing size | 1470*240*730mm |
| Container QTY | 101pcs/264pcs |
