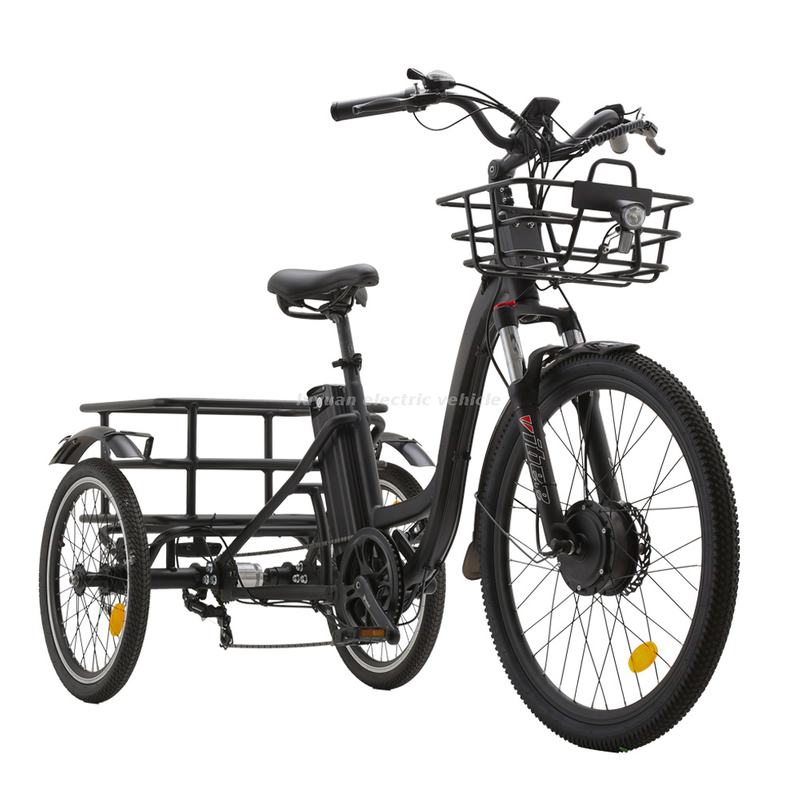

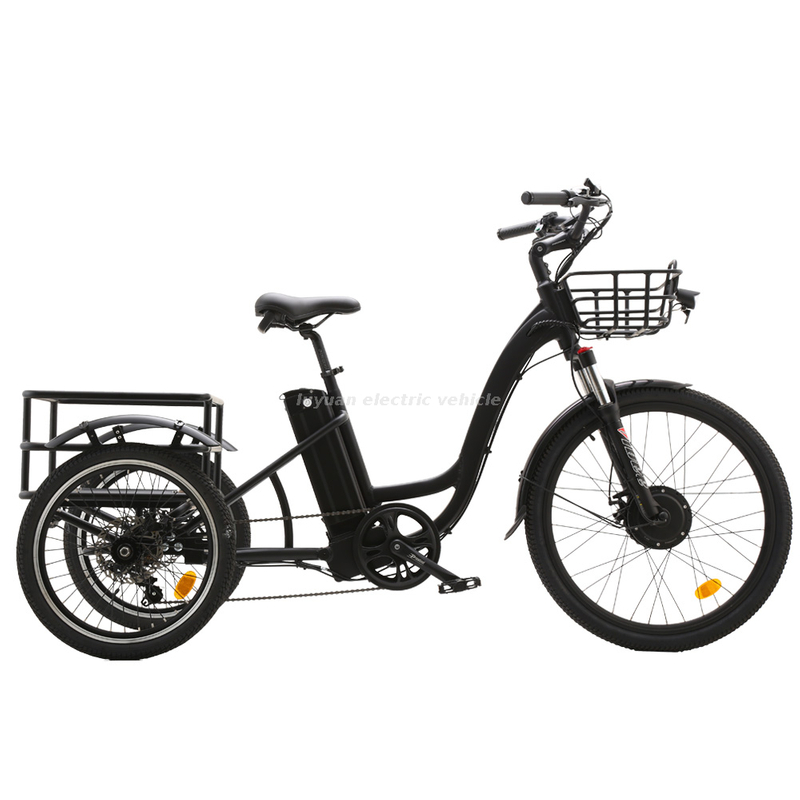

Electric Tricycle ET 02

Availability:
Quantity:
Inquire Add to Basket

Electric Tricycle ET 02
Electric Tricycle ET 02
Electric Tricycle ET 02
Electric Tricycle ET 02
Electric Tricycle ET 02
Electric Tricycle ET 02

  • ET 02

  • Luyuan or OEM

Model   NameET 02
Motor Power48v350w
Controller48V18A
Display BoardLCD   Display/5 levels
Battery48V10AH
Charger54.6V2A
ThrottleWUXING   130X(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeF:Tektro   MD-M280  R: Novich MD disc brake
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeSEYOUN   26*1.95/20*1.75
Range/Speed 165-80km/18-20kmph
Range/Speed 240-50km/25kmph
Loading75－110KG


Frame materialAL6061
Body Size1900*630*1130mm
Wheelbase1320mm
Net Weight28-32kg
Battery Weight3kgs
Color option
Packing size1600*800*800mm
Container QTY63pcs
