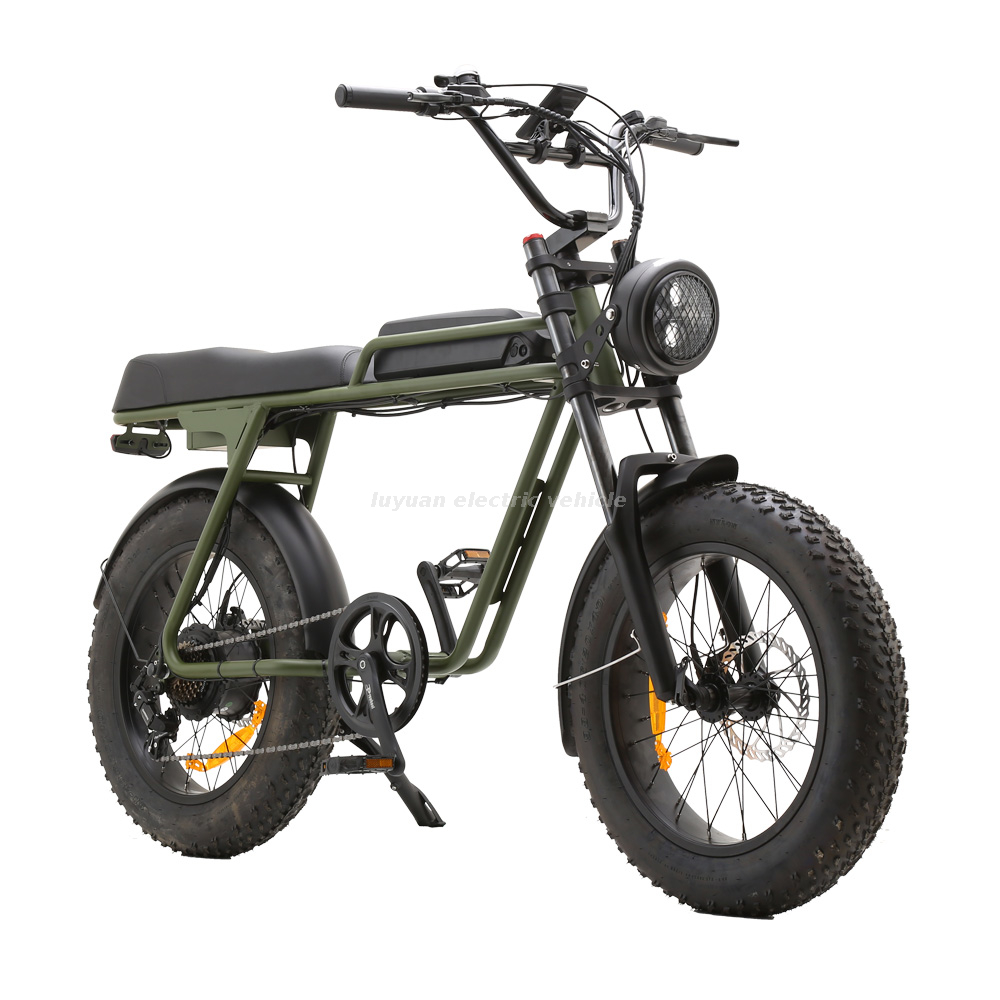

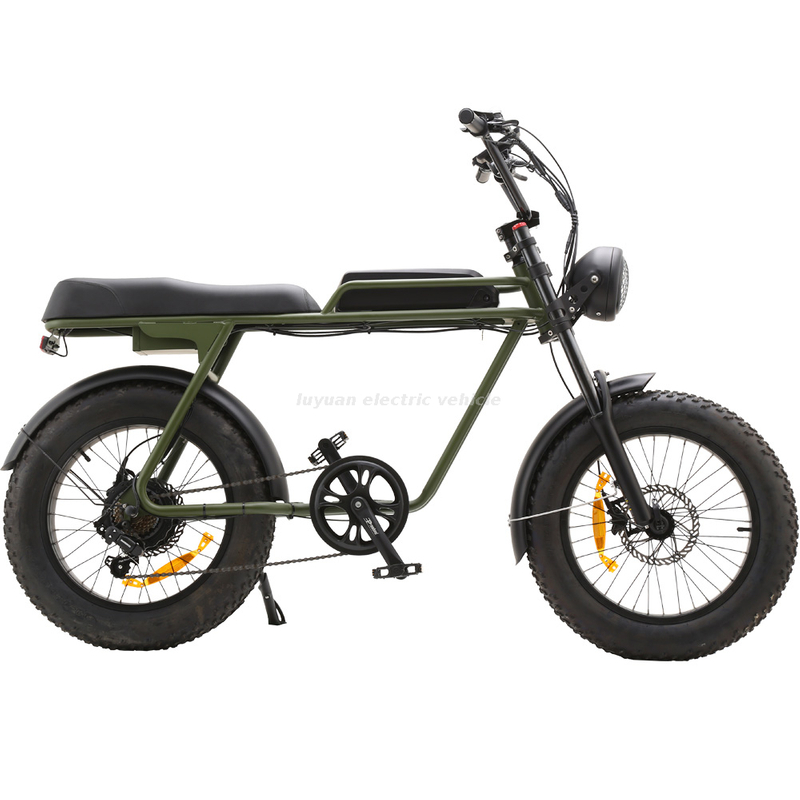

Electric Vintage Bike EH 03

Availability:
Quantity:
Inquire Add to Basket

Electric Vintage Bike EH 03
Electric Vintage Bike EH 03
Electric Vintage Bike EH 03
Electric Vintage Bike EH 03
Electric Vintage Bike EH 03
Electric Vintage Bike EH 03

  • EH 03

  • Luyuan or OEM

Model   NameEH 03
Motor Power48V500W
Controller48V18A
Display BoardLCD   Display/5 levels
Battery48V10AH
Charger54.6V2A
ThrottleWUXING   130X(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeXD-E500   Hydralic disc brake (180mm)
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeSEYOUN   K1188 20*4.0"
Range/Speed 165-80km/18-20kmph
Range/Speed 240-50km/25kmph
Loading75－120KG


Frame materialCarbon   steel
Body Size1700*720*1150mm
Wheelbase1130mm
Net Weight26-30kg
Battery Weight3kgs
Color option
Packing size1390*240*700mm
Container QTY112pcs/278pcs
