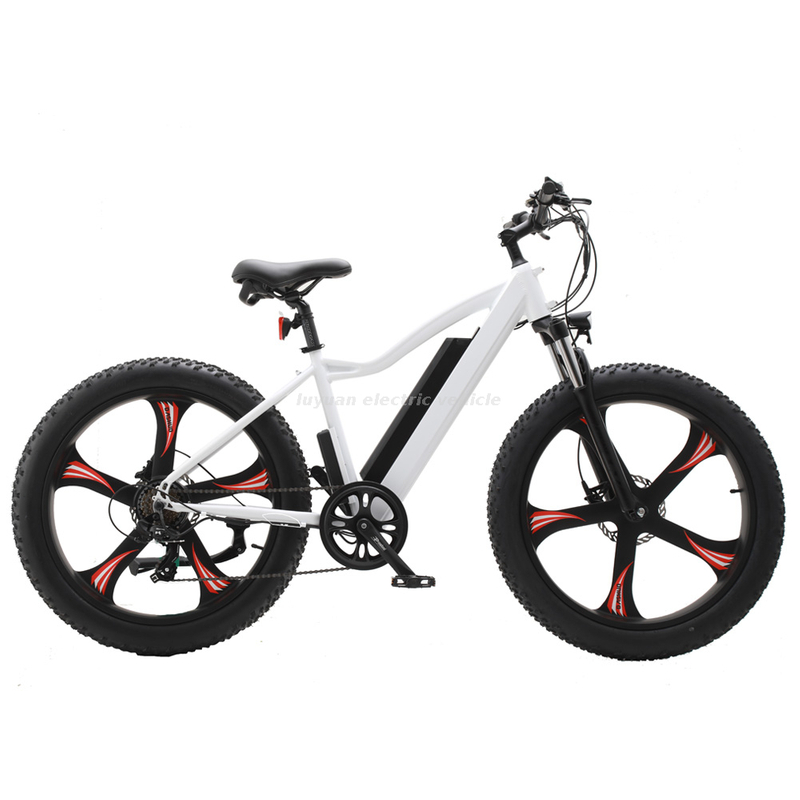

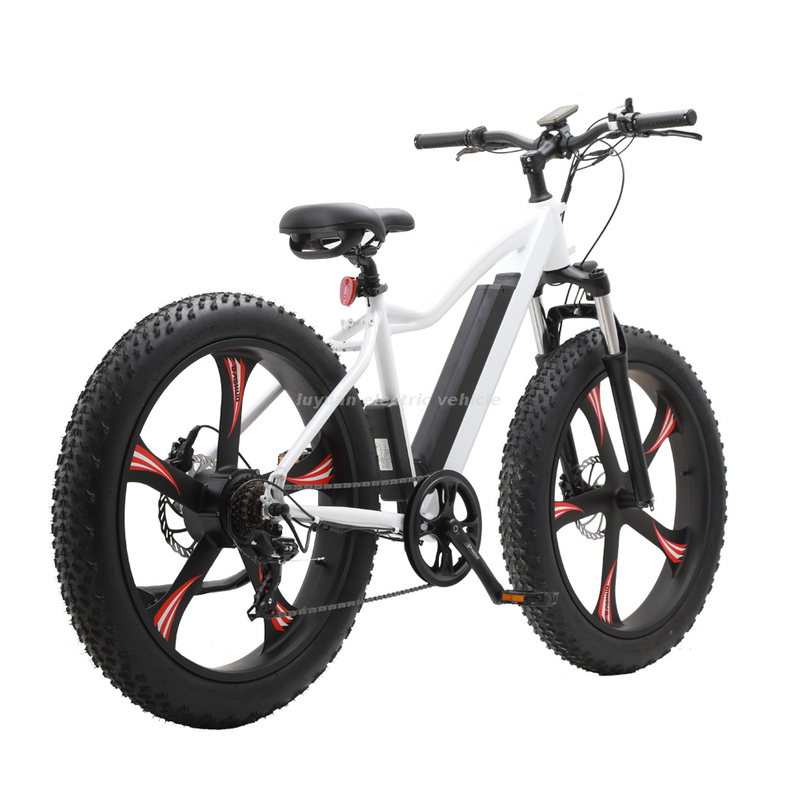

Ebicycle 32km/h New Promoted Electric Bicycles

Availability:
Quantity:
Inquire Add to Basket

Ebicycle 32km/h New Promoted Electric Bicycles
Ebicycle 32km/h New Promoted Electric Bicycles
Ebicycle 32km/h New Promoted Electric Bicycles
Ebicycle 32km/h New Promoted Electric Bicycles
Ebicycle 32km/h New Promoted Electric Bicycles
Ebicycle 32km/h New Promoted Electric Bicycles

  • EM 01W

Model   NameEM 01W
Motor Power48V500W
Controller48V18A   sine wave　
Display BoardK6MS   LCD display/5 level
Battery48V10AH
    (Tesson 2500mah cell)
Charger54.6V   2A (UL certificate)

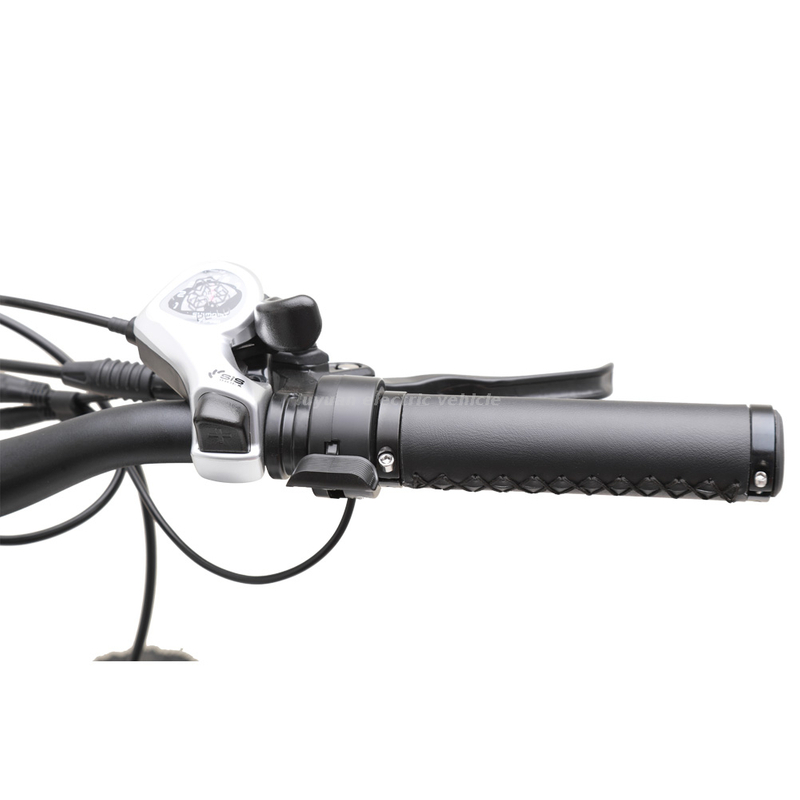

ThrottleWUXING   130X (LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeXD-E500   Hydralic disc brake
DerailleruShimano   TX50-7/trigger shifter
Fork SuspensionHydraulic   lockout
Wheel/rim sizeSEYOUN   26*4.0
Range/Speed 180km/25kmph   by PAS
Range/Speed 250km/25kmph   by throttle
Loading75－100kgs


Frame materialAL6061
Body Size1950*690*1180mm
Wheelbase1200mm
Net Weight24-28kg
Battery Weight3kgs
Color option
Packing size1500*320*870mm
Container QTY56pcs/168pcs
