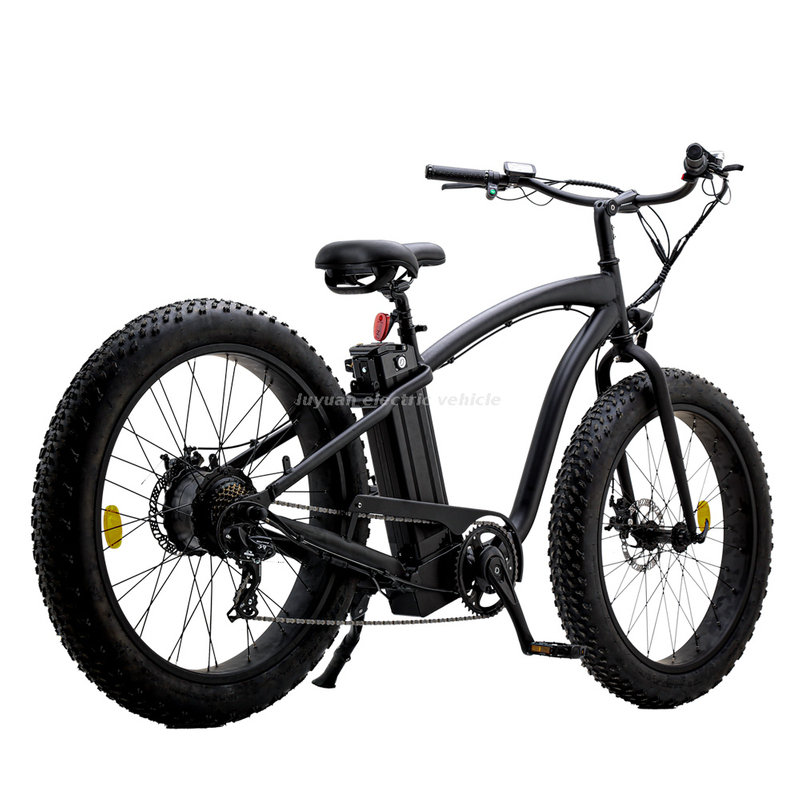

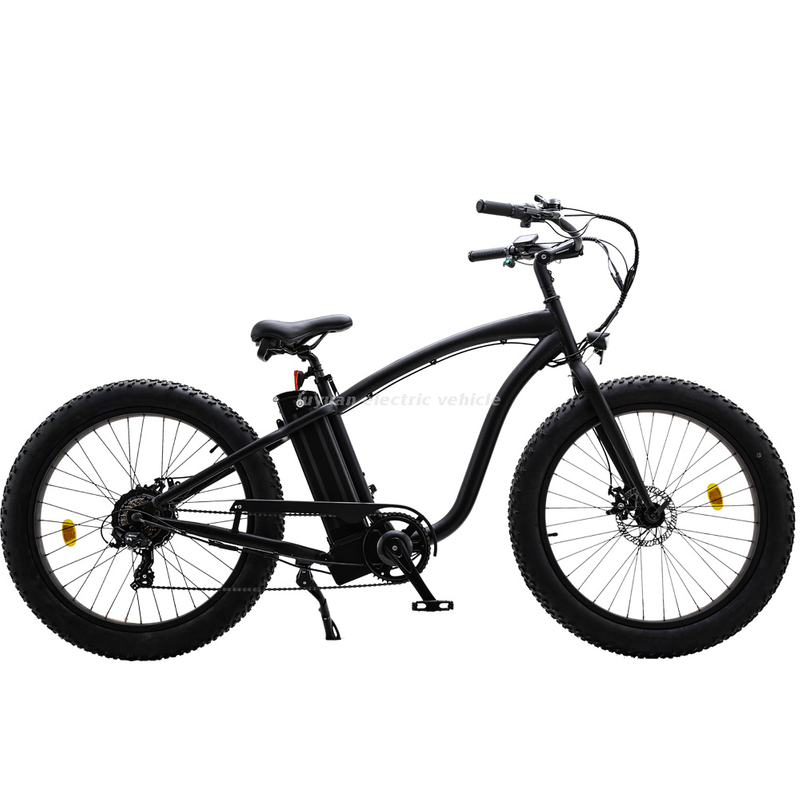

Electric Bicycle EL 01

Availability:
Quantity:
Inquire Add to Basket

Electric Bicycle EL 01
Electric Bicycle EL 01
Electric Bicycle EL 01

  • EL 01

  • Luyuan or OEM

Model   NameEL 01
Motor Power48v500w
Controller48V18A
Display BoardLCD   Display/ 5leve
Battery48V15.6AH
Charger54.6V2A
ThrottleWUXING   23X246(LH)
PAS SensorSpeed   sensor(left hidden dual Hall sensor)


BrakeTektro   MD-M280
DerailleruShimano   TX50-7/trigger shifter
Fork Suspension/
Wheel/rim sizeSEYOUN   26*4.0
Range/Speed 1110-130km/18-20kmph
Range/Speed 270-80km/25kmph
Loading75－120KG


Frame materialAL6061
Body Size2000*730*1150mm
Wheelbase1320mm
Net Weight24-28kg
Battery Weight4kgs
Color option
Packing size1570*300*970mm
Container QTY54pcs/132pcs
