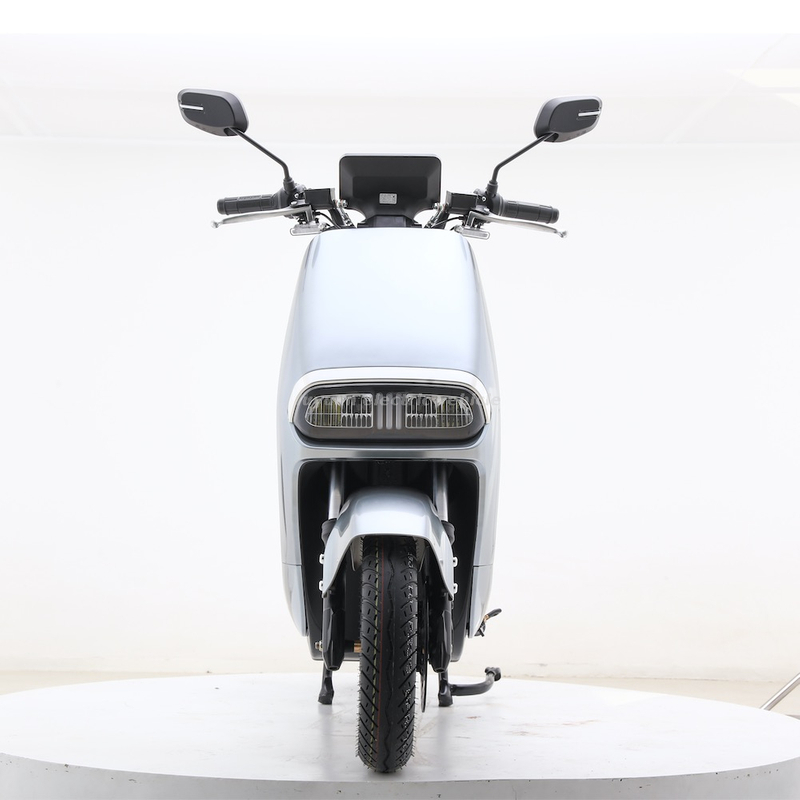

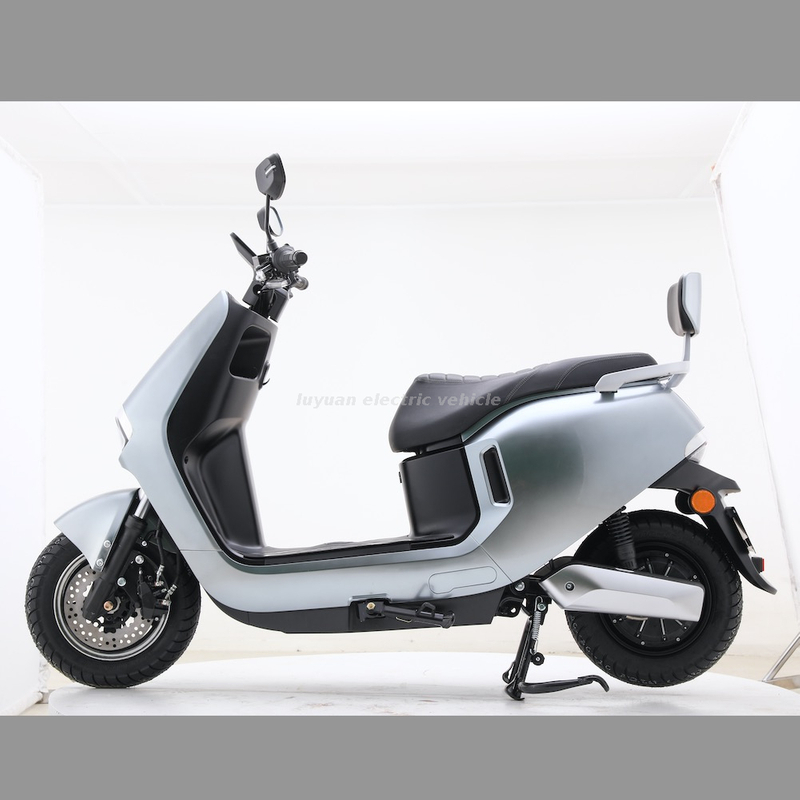

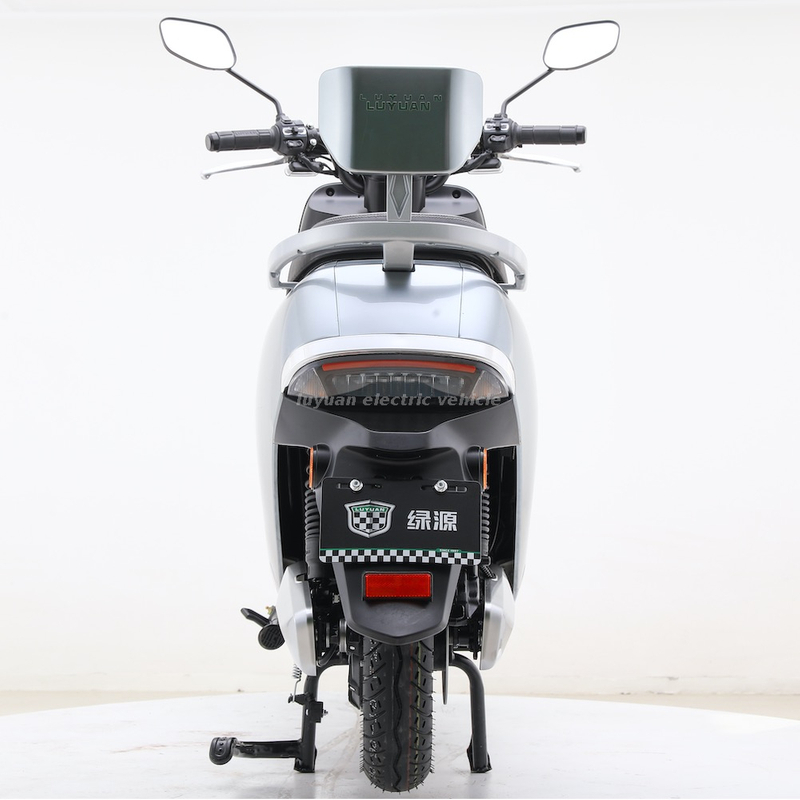

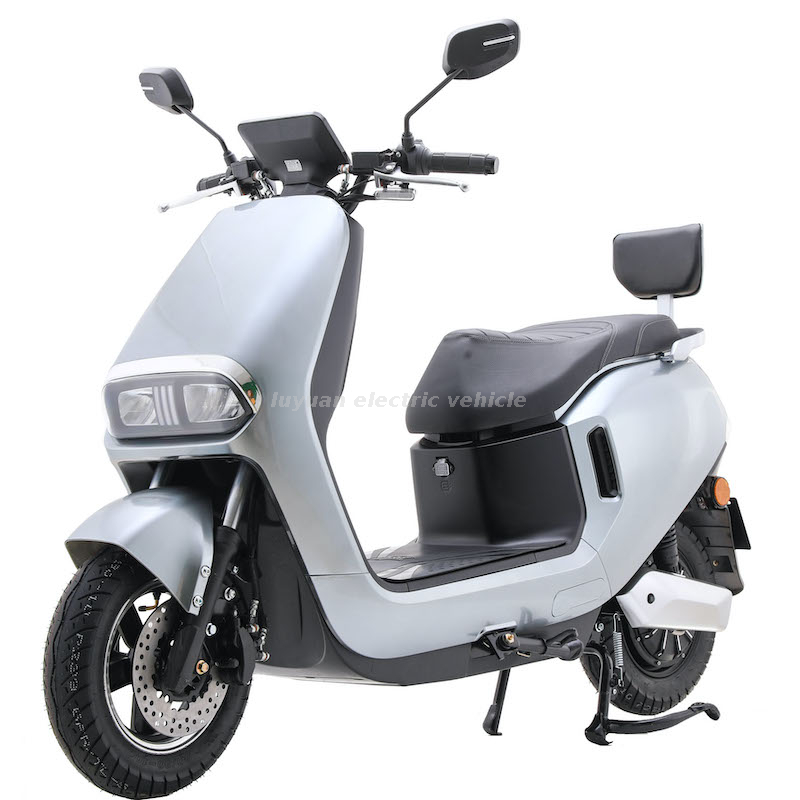

S30 Plus
LUYUAN
| Model Name | S30 Plus （EEC version） |
| Model Number | M-MHH-7230LF-16H-C-SOC |
| Rated motor power | 72V/750R/1500W 6X Liquid-Cooled Motor |
| Battery | 72V30AH Lithium battery |
| Charger | Input AC 90-240V, Output DC 72V6.0A |
| Controller | 72V55A |
| Max speed | 60KM/H （Low grade 45km/j） |
| Range | 80-100KM |
| Brake(Front/Rear) | F/R Disc brake 180+190mm, CBS (Combined Brake System ) |
| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F: Aluminum cylinder hydraulic R: Spring +Hydraulic |
| Wheel size and tire | 90/90-10 Radial anti-puncture tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 15° |
| Weight（include battery） | 92KG |
| Product dimension | 1800*710*1098mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 52pcs/40HQ |
| Model Name | S30 Plus （EEC version） |
| Model Number | M-MHH-7230LF-16H-C-SOC |
| Rated motor power | 72V/750R/1500W 6X Liquid-Cooled Motor |
| Battery | 72V30AH Lithium battery |
| Charger | Input AC 90-240V, Output DC 72V6.0A |
| Controller | 72V55A |
| Max speed | 60KM/H （Low grade 45km/j） |
| Range | 80-100KM |
| Brake(Front/Rear) | F/R Disc brake 180+190mm, CBS (Combined Brake System ) |
| Light | LED light |
| Display | LCD display board, SOC control core |
| Shock absorber | F: Aluminum cylinder hydraulic R: Spring +Hydraulic |
| Wheel size and tire | 90/90-10 Radial anti-puncture tire |
| Anti theft system | Remote controlalarm |
| Climbing ability | 15° |
| Weight（include battery） | 92KG |
| Product dimension | 1800*710*1098mm |
| Packing size | 1800*550*1050mm |
| Loading Qty. | 26pcs/20GP, 52pcs/40HQ |
